Microscale

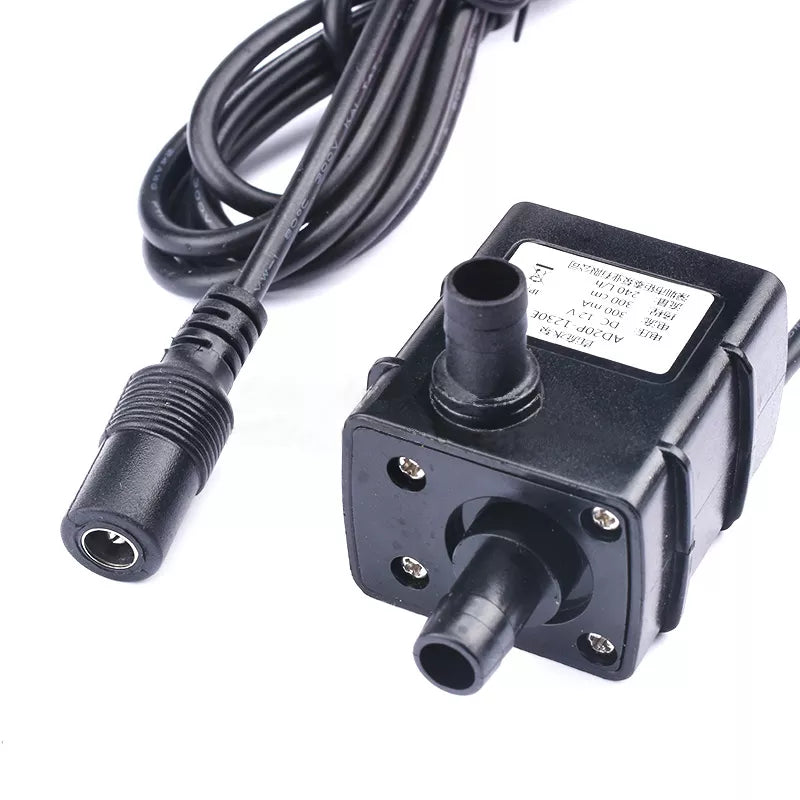

12v DC pump AD20P-1230C

12v DC pump AD20P-1230C

Regular price ₦9,150.00 NGN
Regular price Sale price ₦9,150.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Specification: Input Voltage : DC12V Power : 4.8W Model: AD20P-1230A/PF-228 Flow Rate : Max. 200-240LPH (12v) Hmax. (head) : 2 meters (Maximum Water Pumping Height). Material : Plastic Color : Black Outlet Diameter : Approx. 8mm Dimension : Approx. 3.7 x 3.3 x 2.7cm/1.5 x 1.3 x 1.1 inch Cord Length : Approx. 140cm/55 inch

Features:

Brushless, permanent magnetic rotor. Super long working life(more than 30000 hours). Adopt high performance ceramic shaft. The axis is enclosed with static sealing, not dynamic, which can avoid leaking problems. Amphibious design. Submersible installation and entirely waterproof. low consumption. low noise(less than35db). Pump material: ABS. Condition of use: continuously. Fluids: Water, oil, gasoline, acid and alkali solution. Working temperature: 0 ~ 75c. Power consumption: 3.6W. Rated voltage: 12V DC. Max rated current: 350mA. Max flow rate: 4L/MIN(1.06G/MIN). Max Head(lift height): 3M. Noise: <40dB(most 35dB). Water proof class: IP68(can be submersible installed). Life span: More than 30000hrs.

Outlet size: 8MM

Power supply: Solar panel, DC electric source, battery.

Size: 5.5cm x 3.5cm x 4.5cm.
