LCD 16x2

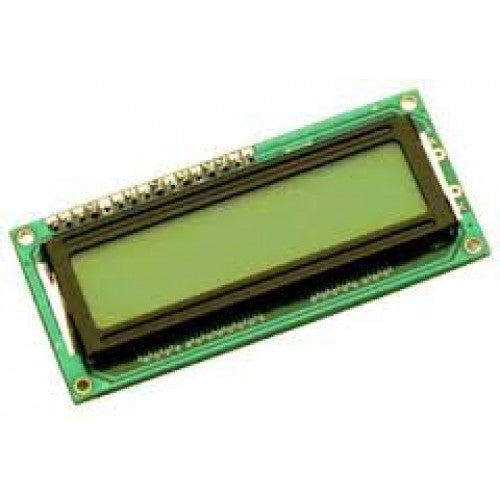

LCD modules are vey commonly used in most embedded projects, the reason being its cheap price, availability and programmer friendly. Most of us would have come across these displays in our day to day life, either at PCO’s or calculators. The appearance and the pinouts have already been visualized above now let us get a bit technical.

16×2 LCD is named so because; it has 16 Columns and 2 Rows. There are a lot of combinations available like, 8×1, 8×2, 10×2, 16×1, etc. but the most used one is the 16×2 LCD. So, it will have (16×2=32) 32 characters in total and each character will be made of 5×8 Pixel Dots.

Technical Specification

• Operating Voltage is 4.7V to 5.3V
• Current consumption is 1mA without backlight
• Alphanumeric LCD display module, meaning can display alphabets and numbers
• Consists of two rows and each row can print 16 characters.
• Each character is build by a 5×8 pixel box
• Can work on both 8-bit and 4-bit mode
• It can also display any custom generated characters
• Available in Green and Blue Backlight
