1N4148 diode

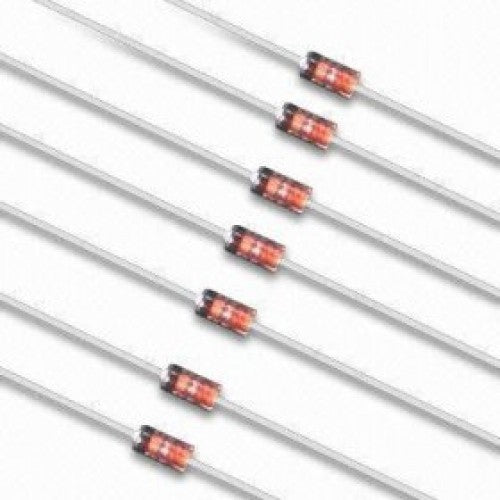

A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For IN4148 Diode, the maximum current carrying capacity is 300mA it can withstand peaks up to 2A. The speciality of this diode is its fast recovery time of 8ns at a forward current of 10mA, hence this diode is used in places where fast switching are involved.

Technical Specification

• Fast switching Diode
• Peak repetitive Reverse voltage is 100V
• RMS reverse voltage is 75V
• Peak forward surge current is 2A
• Forward continuous current If 300mA
• Reverse recovery time 8ns
