Microscale

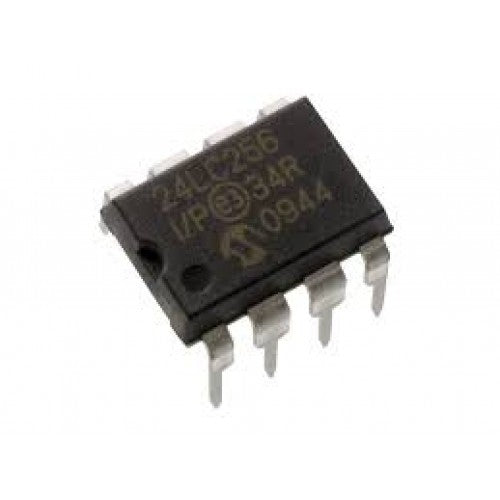

24LC256

24LC256

Regular price ₦0.00 NGN
Regular price Sale price ₦0.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

24LC256

This is a 32K x 8 (256 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.8V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space

Technical Specification

  • Low-power CMOS technology:
    • Maximum write current 3 mA at 5.5V
    • Maximum read current 400 μA at 5.5V
    • Standby current 100 nA, typical at 5.5V
  • 2-wire serial interface bus, I2C™ compatible
  • Cascadable for up to eight devices
  • Self-timed erase/write cycle
  • 64-byte Page Write mode available
  • 5 ms max. write cycle time
  • Hardware write-protect for entire array
  • Output slope control to eliminate ground bounce
  • Schmitt Trigger inputs for noise suppression
  • 1,000,000 erase/write cycles
  • Electrostatic discharge protection > 4000V
  • Data retention > 200 years
  • Pb-free finishes available
