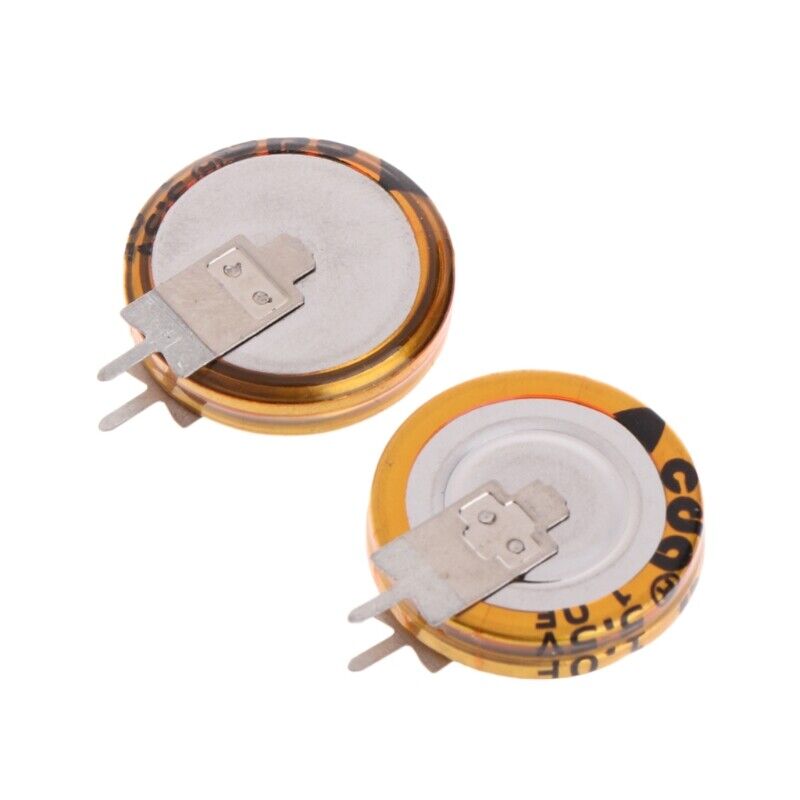

5.5v 1.0F super capacitor

This super capacitor is also called an ultracapacitor, it is a high-capacity capacitor with a capacitance value (1F) much higher than other capacitors, but with lower voltage limits (5.5), that bridges the gap between electrolytic capacitors and rechargeable batteries. They exhibit such unique features as high capacitance, high power density, and a long cycle. Some required features such as higher stability, durability, and catalytic activity, and a lower cost are also included.

Technical Specification

• Body shape : Coin type(multi-layer structure)
• Maximum operating voltage : 5.5 (V)
• Capacitance : 1 (F)
• Tolerance on capacitance : -20 to 80 (%)
• Internal resistance(max.) : 30 (Ohm)
• Category temperature range : -25 to 70 (Cel)
• Body diameter : 21.5 (mm)
• Occupied-length : 21.5 (mm)
• Occupied-width : 21.5 (mm)
• Occupied-height : 8 (mm)
• Lead(terminal) pitch : 5 (mm)
• Endurance : 1000 (h)
