Microscale

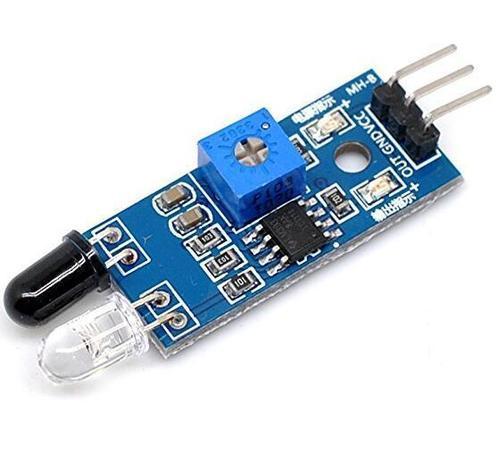

5mm Infrared sensor

5mm Infrared sensor

Regular price ₦975.00 NGN
Regular price Sale price ₦975.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

The basic concept of IR(infrared) obstacle detection is to transmit the IR signal(radiation) in a direction and a signal is received at the IR receiver when the IR radiation bounces back from a surface of the object. Features: There is an obstacle, the green indicator light on the circuit board Digital output signal Detection distance: 2 ~ 30cm Detection angle: 35 ° Degree Comparator chip: LM393 Adjustable detection distance range via potentiometer: -Clockwise: Increase detection distance -Counter-clockwise: Reduce detection distance

Working voltage: 3 - 5V DC

Output type: Digital switching output (0 and 1)

3mm screw holes for easy mounting

Detection : 2 ~ 30cm and 35 ° Degree

Board size: 3.2 x 1.4cm
