5V 100-700MA 12v 0-360MA dual-group isolated power supply module

Description:

AC-DC 5V 100-700MA 12v 0-360MA dual-group isolated power supply module AC 85V-264V 5w

Specifications:

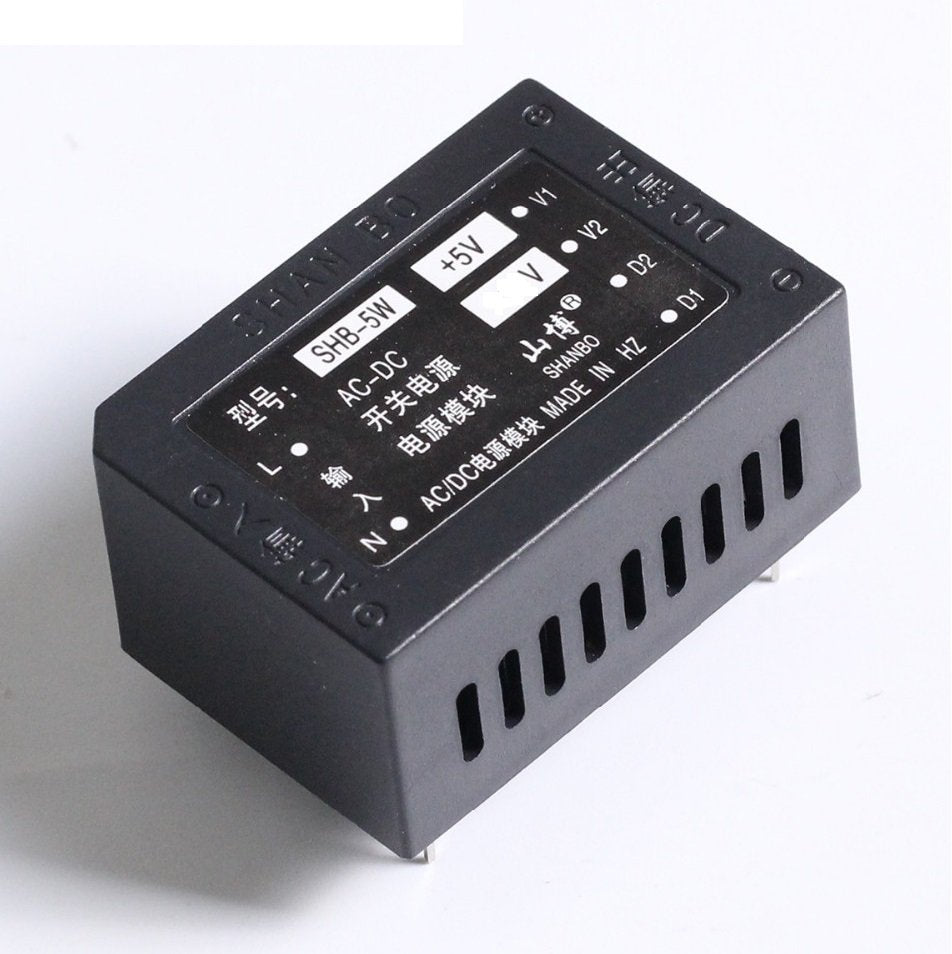

Model SHB-5W / 5V / 12V GL Dual output Chu

rated power: 5W

V1Voltage: DC5V+ -2% Current 100-700MA (main circuit)

V2 Voltage: DC 12V + -5% Current 0-360MA (secondary)

(Note: The sum of the main road power should not be greater than the rated power)

Input voltage: AC85V-264V

Work efficiency: 75-82%

Ripple voltage: No-load power consumption:

Isolation voltage:> AC2000V

Isolation resistance:> 200MR

Voltage regulation rate ≤ 0.8%

Load regulation ≤ 1%

On time: 50MS

Hold time: 20MS

Transient response: 500US

Temperature coefficient: ≤ 0.05% / °

Operating frequency: 50-150KHZ

Working environment temperature -10 / 50 ° The mean time between failures is 16000
