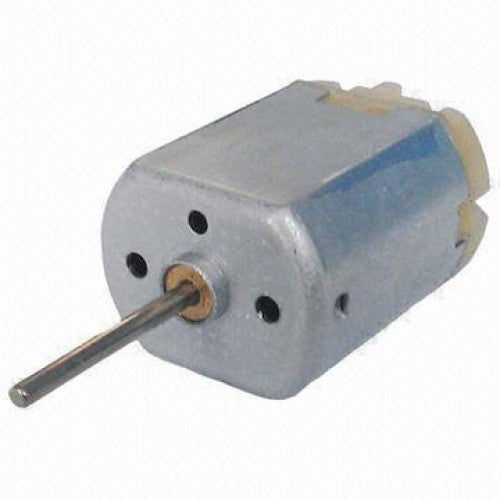

5v DC Motor

DC Motors are electromechanical devices which use the interaction of magnetic fields and conductors to convert the electrical energy into rotary mechanical energy. This Electrical DC Motor is a continuous actuator that convert electrical energy into mechanical energy. The DC motor achieves this by producing a continuous angular rotation that can be used to rotate pumps, fans, compressors, wheels, etc.

Technical Specification

• Actual rated voltage: 6v
• Voltage range: 1v-6v
• Speed at 3v: 17,000rpm-18,000rpm
• Current: 0.35A-0.4A
• Dimensions: 20 x 15 x 25
• Axis length: 8mm
• Shaft diameter: 2mm
• Current at No load: 70mA (max)
• No-load Speed: 9000 rpm
• Loaded current: 250mA (approx)
• Rated Load: 10g*cm
