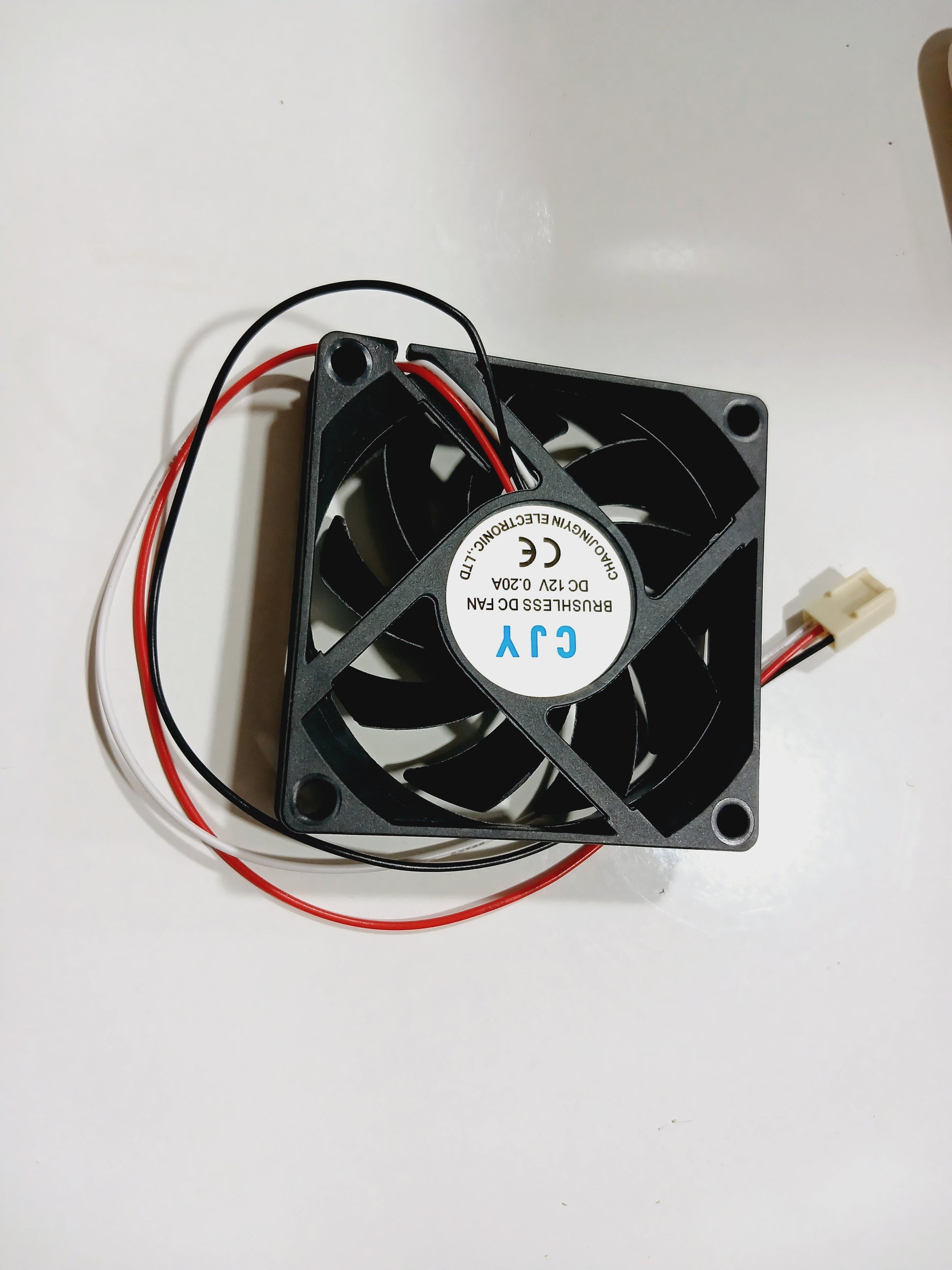

7015 12v brushless DC Fan

Model number : 7015

Fan size 70mm x 70mm x 15mm

Fan type Oil bearing

Fan speed 2200RPM (±10%)

Fan air volume 26.03 CFM

Fan noise 25dBA

Voltage and current 12V DC 0.12A

Fan interface Motherboard 3pin port (KF2510 3P) Cable length about 24cm

Fan screw hole diameter: about 4.5MM No matching screws!

7 cm wide, 1.5 cm thick, can be used for 478 series CPU fans, AMD K8 series  fans replacement.

Note!

This fan does not have a speed measurement function. The wiring is red positive and black negative, and white does not need to be connected. Single fan, no other screws and other accessories. The fan is brand new, and the plug may be stained with oil during the factory test, which does not affect the use.
