Ai-Thinker Ra-01 RF Transceiver Module

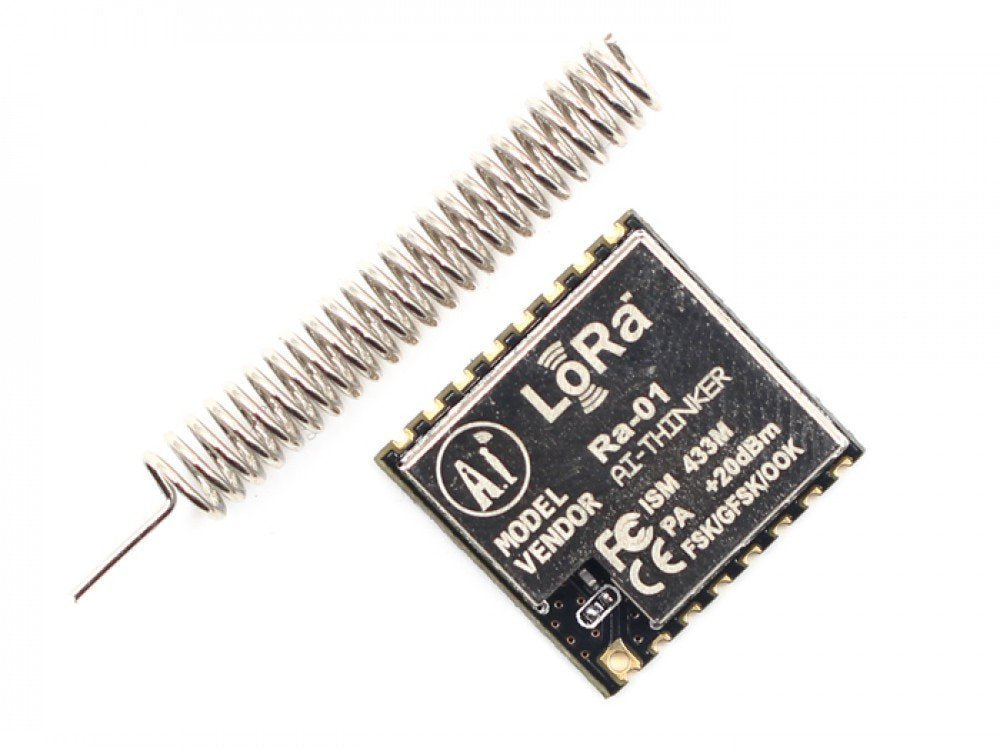

Developed by Ai-Thinker company, the manufacturer of the ESP32S, this Ra-01 LoRa (Long-range Radio) module will take your IoT projects the distance with communication over a long-range spread spectrum. This module uses SX1278 IC and works on a 433MHz frequency. Frequency hopping—which gives you that sweet balance of quality signal transmission—will cover a range of 420-450MHz. This long-range wireless capability is packed into a small (17 x 16mm) package and delivered through a spring antenna.

This form of wireless communication results in a larger bandwidth, increasing interference resistance, minimizing current consumption, and increasing security. At the same time, compared with the traditional modulation technology, LoRa™ Modulation technology in anti-blocking and selection also has obvious advantages, to solve the traditional design can not take into account the distance, interference, and power consumption.

Applications:

Wireless Alarm and Security Systems. Automated Meter Reading. Long-range Irrigation Systems. Home and Building Automation. Industrial Monitoring and Control. Features:

127dB RSSI wave range. LoRaTM spread spectrum communication Half-duplex SPI communication Automatically detect RF signal, CAD mode, and super high-speed AFC The programmable bit rate can reach 300kbps Support FSK, GFSK, MSK, GMSK, LoRaTM, and OOK Modulation Mode With metal shielding case With CRC 256 bytes data engine Half hole (castellated hole) SMD package
