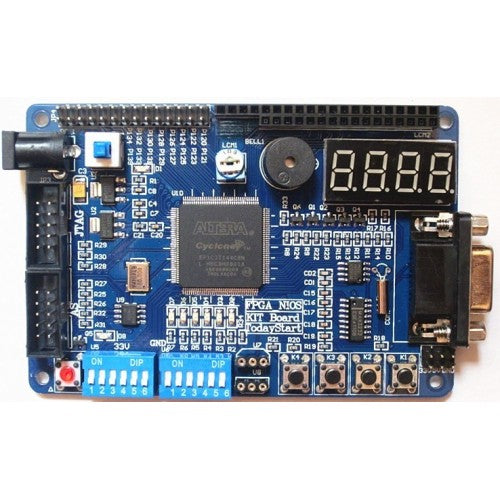

Altera Cyclone FPGA kit

Altera Cyclone FPGA kit

Regular price ₦7,800.00 NGN
Regular price Sale price ₦7,800.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Development board resourcedescription:

_1. the main chip: using Altera s Cyclone series_EP1C3T144

2. 4separate buttons: as interactive input device, keyboard design below, we usethe keys for more convenient use.

__3. __4 digital: digital usestransistor drive. Learning digital static and dynamic scanning displaytechnology. You can do electronic clock, frequency meter, counters andother experiments.______

__3. __6 LED lights: do marquees, water lights and othertricks lights experiments, but also as a device statusdisplay.

4. Double-bit 8-way DIP switch: used to make two-way ormulti-channel digital logic circuit experiment

5. the clock: use 50MHZ active clock, close to theactual application.

__6. __IR receiver IC: You can use VS1838 and so do theinfrared receiver receives experiments, scalable infrared remote controlkeypad.

7. the temperature sensor DS18B20interface: learning bus line, 1-Wire newsletter, do thermometer, temperaturealarm device.

__8. __Buzzer: accompaniment of music do experiments, such asthe alarm sound.

9. serial processingMAX232: This synchronous asynchronous serial communication as the level ofconversion, do synchronous asynchronous serial communicationexperiment.

__10. ____________DS1302 clock module: can be used to developelectronic clock, calendar, with a backup battery, so the clock neverstop.

11. LCD 16-pin interface: 16-pincompatible LCD interface with luminosity debugging resistors 1602 linecharacter, bitmap-type 12232 and so on.

12. LCD20-pin interface: 20-pin compatible LCD interface, with backlight adjustableresistance, the bitmap can be in-line type 12864 and soon.

13. the power part: using multiplesets of dual power LDO module to facilitate supply to eachmodule.


14. FPGAconfiguration module: use of large-capacity memory chips EPCS4, board withreconfigurable keys.

____15______. AS andJTAG download interface: You can download the program directly through theJTAG interface to the FPGA chip, or have the program downloaded to the AS-Interface memory chips, power-down data is notlost.______

__16. __Power expansion port: You can extend the output supplyvoltage 3.3V, 5V, GND interface, easy external powersupply.


17. extended IO port:In addition to developing the use of the IO module board, the board uses pinlead 28 IO, can be extended to other externaldevices.
