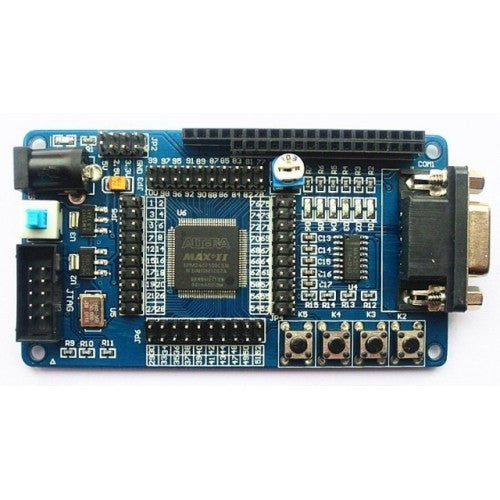

Altera Max II CPLD Dev kit

Resources

1, the core chip: EPM240T100

2, the power module: the 5V input, regulated output 3.3V, 2.5V,

3, the clock signal: 50MHZ active crystal

4, all extensions by IO pin lead (to facilitate debugging and extended use)

5, with a six-way LED output, ease of marquees, light water experiment

6, with serial communication module; __facilitate communication with the computer experiment__

7 LCD Interface: __easy (1602/12864) LCD displayexperiment ,__

8, with four separate buttons

9, there is a dedicated JTAG download interface

10, with the power switch and power indicator
