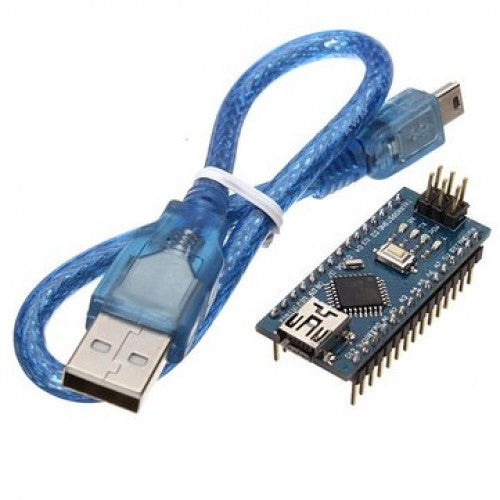

Arduino Nano

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Technical Specification

• Operating Voltage (logic level) 5V
• Input Voltage (recommended) 7-12 V;
• Input Voltage(limits) 6-20 V
• Digital I/O Pins 14 (of which 6 provide PWMoutput)
• Analog Input Pins 8;
• DC Current per I/O Pin 40mA
• Flash Memory 32 KB of which 2 KB used by bootloader;
• SRAM 2 KB
• EEPROM 1 KB
• Clock Speed 16 MHz
• Dimensions0.73 x 1.70 inch
