Microscale

Arduino Uno + USB cable

Arduino Uno + USB cable

Regular price ₦15,900.00 NGN
Regular price Sale price ₦15,900.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Arduino uno

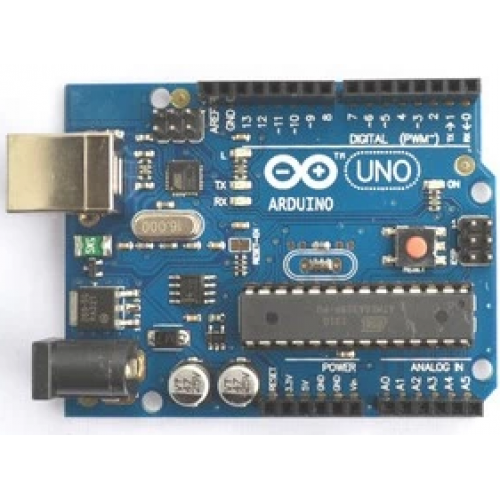

Arduino Uno is a microcontroller board based on the ATmega328P . It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your UNO without worring too much about doing something wrong,

Technical Specification

  • Microcontroller ATmega328P
  • Operating Voltage 5V
  • Input Voltage (recommended) 7-12V
  • Input Voltage (limit) 6-20V
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • PWM Digital I/O Pins 6
  • Analog Input Pins 6
  • DC Current per I/O Pin 20 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
  • SRAM 2 KB (ATmega328P)
  • EEPROM 1 KB (ATmega328P)
  • Clock Speed 16 MHz
