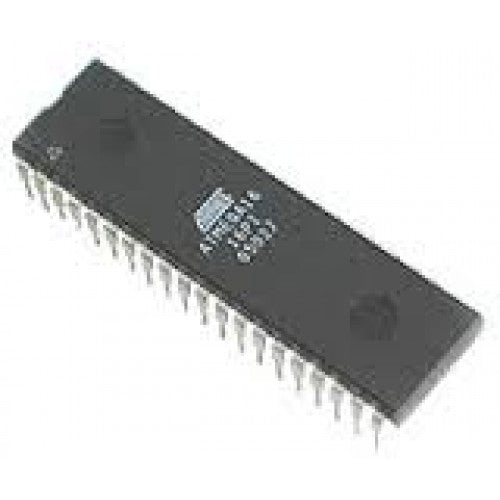

ATmega16

ATMEGA16 microcontroller is one of the popular controllers in AVR series. With its features and purchase cost it became one of favorite controller for both hobbyists and engineers. ATMEGA16 programming is similar to any other AVR controller. It is particularly a clone to ATMEGA32 except for the memory. Although it has only half the memory of ATMEGA32, it is still more than enough to satisfy most EMBEDDED SYSTEMS.

ATMEGA16 has also sleep modes. The modes can be triggered at desired times to save power. With various sleep modes on board ATMEGA16 can work on MOBILE EMBEDDED SYSTEMS.

ATMEGA16 has 32 programmable Input/output pins, with them ATMEGA16 can interface many peripherals easily.

ATMEGA16 has also programmable Watchdog Timer with Separate On-chip Oscillator. With this Watchdog timer to reset under error the controller can be used on applications where human interference in minimal.

Technical Specification

• High-performance, Low-power Atmel® AVR® 8-bit Microcontroller
• Advanced RISC Architecture
  • 131 Powerful Instructions – Most Single-clock Cycle Execution
  • 32 x 8 General Purpose Working Registers
  • Fully Static Operation
  • Up to 16 MIPS Throughput at 16 MHz
  • On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
  • 16 Kbytes of In-System Self-programmable Flash program memory
  • 512 Bytes EEPROM
  • 1 Kbyte Internal SRAM
  • Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
  • Data retention: 20 years at 85°C/100 years at 25°C(1)
• Peripheral Features
  • Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
  • One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
  • Real Time Counter with Separate Oscillator
  • Four PWM Channels
  • 8-channel, 10-bit ADC
  • Byte-oriented Two-wire Serial Interface
  • Programmable Serial USART
  • Master/Slave SPI Serial Interface
  • Programmable Watchdog Timer with Separate On-chip Oscillator
  • On-chip Analog Comparator
• I/O and Packages
  • 32 Programmable I/O Lines
  • 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
• Operating Voltage
  • 4.5V - 5.5V for ATmega16
• Speed Grade
  • 0 - 16 MHz for ATmega16
