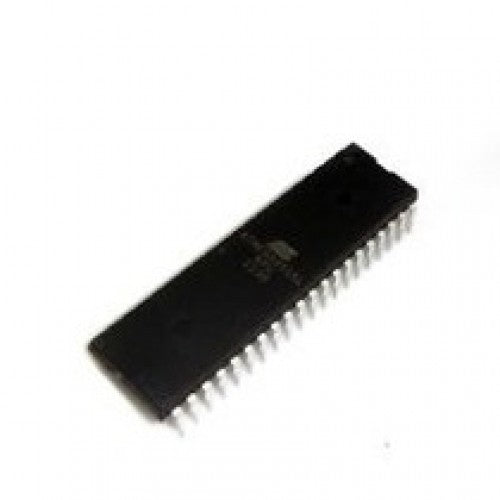

Atmega8515

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 8KB of programmable flash memory, 544B internal memory, up to 64KB external SRAM, and 512B EEPROM. The device supports a throughput of 16 MIPS at 16MHz and operates between 2.7-5.5 volts.

By executing instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Technical Specification

• Program Memory Type: Flash
• Program Memory Size (KB): 8
• CPU Speed (MIPS/DMIPS): 16
• Data EEPROM/HEF (bytes): 512
• Digital Communication Peripherals: 1-UART, 1-SPI
• Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP, 3PWM
• Temperature Range (C): -40 to 85
• Operating Voltage Range (V): 2.7 to 5.5
• Pin Count: 44
