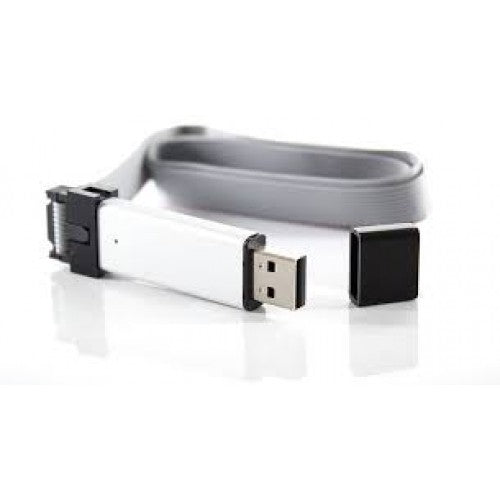

AVR ISP

AVR-ISP-MK2 supports the programming of Atmel 8-bit AVR microcontrollers with ISP, PDI or TPI interfaces. Using the AVR/ATMEL Studio software, designers can program tinyAVR and megaAVR devices using the ISP Interface, tinyAVR devices using the TPI interface, and AVR XMEGA devices using the PDI Interface. The programmer also works with AVRDUDE

Technical Specification

• Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
• Programs both Flash and EEPROM
• Supports Fuses and Lock Bit Programming
• Based on AT AVRISP mkII firmware
• Upgradable to Support Future Devices
• Adjustable ISP programming speed up to 8M frequency
• USB 2.0 compliant (full speed, 12Mbps)
• 3 optional cables to target board
• Powered from USB bus, does not require external power supply
