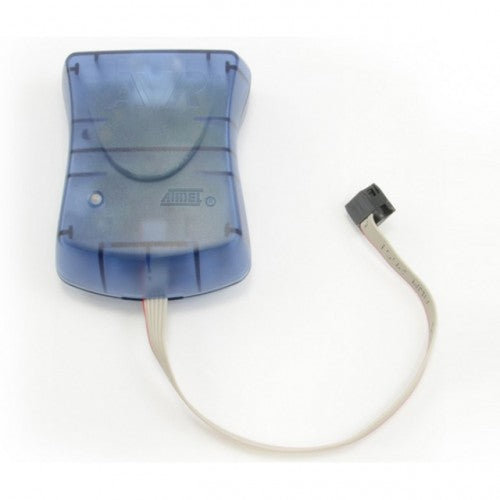

AVRISP MKII programmer

This tool is used for field upgrades of 8-bit AVR microcontrollers with ISP or PDI interfaces. Using the included AVR Studio software, designers can program tinyAVR and megaAVR devices using the ISP Interface, tinyAVR devices using the TPI interface, and AVR XMEGA devices using the PDI Interface.

AVR-ISP-MK2 supports the programming of Atmel 8-bit AVR microcontrollers with ISP, PDI or TPI interfaces. Using the AVR/ATMEL Studio software, designers can program tinyAVR and megaAVR devices using the ISP Interface, tinyAVR devices using the TPI interface, and AVR XMEGA devices using the PDI Interface. The programmer also works with AVRDUDE.

Technical Specification

• Programs both flash and EEPROM
• Supports fuses and lock bit programming
• Upgradeable for future device support
• Supports target voltages from 1.8V to 5.5V
• Adjustable ISP programming speed (50Hz to 8MHz SCK frequency)
• USB 2.0 compliant (full speed, 12Mbps)
• Powered from USB, does not require external power supply
• Target interface protection
• Short-circuit protection
