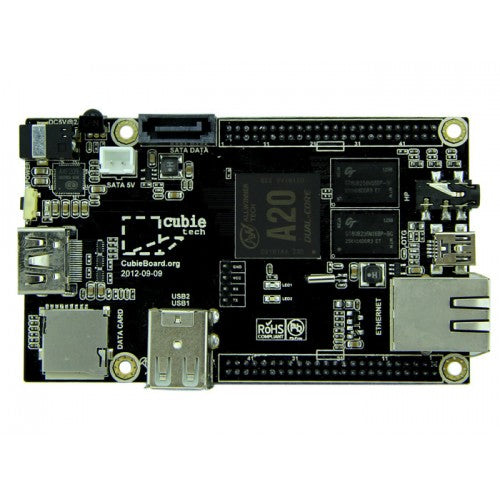

Cubie board 2

Compared with cubieboard, the cubieboard A20 uses an Allwinner A20 processor which has a dual core CPU and twice GPU performance. On the software side, cubieboard2 supports both android 4.2 Jelly Bean, Ubuntu 12.04 and other Linux distributions.

Since cubieboard2 and cubieboard share the same PCB, all the accessories work with cubieboard can also fit cubieboard2.

Features:

Allwinner A20 SOC

96 pin extended interface

Built-in IR receiver

SATA supported

Supports 2.4GHz wireless keyboard and mouse

Specifications: CPU: ARM® Cortex™-A7 Dual-Core GPU: ARM® Mali400MP2,Complies with OpenGL ES 2.0/1.1 Memory: 1GB DDR3 @960M Video output: HDMI 1080p Output Network: 10/100M Ethernet Storage: 4GB internal NAND flash, up to 64GB on uSD slot, up to 2T on 2.5 SATA disk IO ports: 2 USB Host, 1 micro SD slot, 1 SATA, 1 IR

Extended interfaces: 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP

Supports systems: Running Android, Ubuntu and other Linux distributions

Power supply：5VDC/2A power supply with 4.00mm(ext.diameter) x 1.7mm(int.diameter) barrel plug * AllWinner A20 SoC (ARMCortex A7 dual core @ 1 GHz CPU, with dual Mali 400MP GPU. * 1GB DDR3memory. * 4 GB NAND Flash on-board, one MicroSD slot and a SATA port ortwo MicroSD slots and a SATA port * HDMI 1080p output * 10/100ethernet connector * 2x USB Host, 1x USB OTG, 1x CIR. * 96extend pin including I²C, SPI and
