Microscale

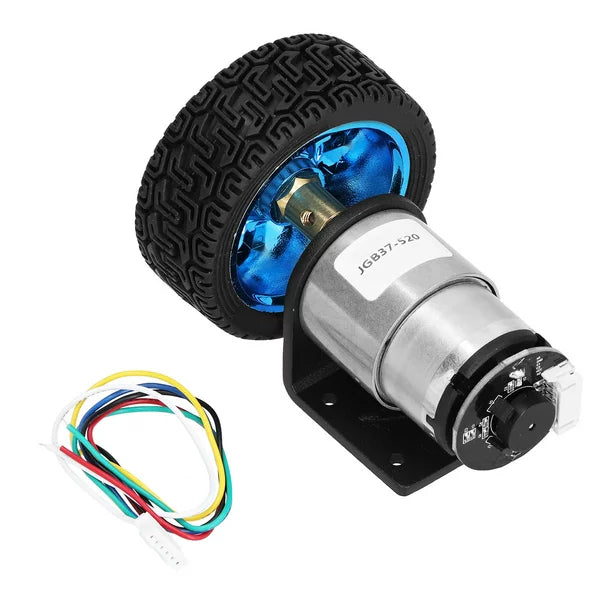

JGB37-520 DC12V Encoder Motor Smart Car Motor (110RPM)

JGB37-520 DC12V Encoder Motor Smart Car Motor (110RPM)

Regular price ₦19,500.00 NGN
Regular price Sale price ₦19,500.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

DC Geared Motors, Encoder Motor 6mm D Shaft 15.5mm Shaft Diameter DC12V with Bracket Wheel for DIY Smart Car
Specification:
Item Type: Encoder Motor Set
Model: JGB37-520
Material: Brass, Copper, Tile
Purpose: Balance Car, DIY Smart Car
Operating Voltage: DC 12V
Shaft Diameter: Approx. 6mm / 0.2in D Shaft
Shaft Length: Approx. 15.5mm / 0.6in



How to Use:


Encoder Connection:
Red: Motor power + (can be CW CCW when by swapping with white)
Black: Encoder power supply‑
Yellow: The signal line motor has 11 pulses per circle
Green: signal line resolution 11 x reduction ratio = resolution
Blue: Encoder power supply+
White: Motor power‑(can be CW CCW by swapping with red)

Specification:
Item Type: Encoder Motor Set
Model: JGB37-520
Material: Brass, Copper, Magnetic Tile
Purpose: Balance Car, DIY Smart Car
Operating Voltage: DC 12V
Shaft Diameter: Approx. 6mm / 0.2in (D Shaft)
Shaft Length: Approx. 15.5mm / 0.6in
CW CCW: Support



Package List:

1 x Motor
1 x Wheel
1 x Bracket
1 x Connection Cable
1 x Coupling
1 x Hex Wrench
7 x Screw
2 x Hex Socket Screw
