DF05BB standard servo (5kg)

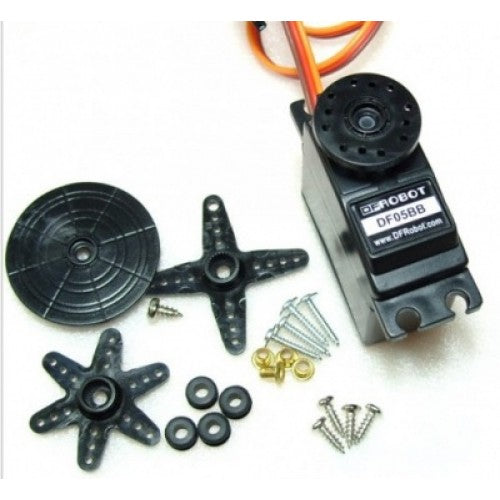

DF05BB Standard Servo (5Kg) is a High Control Accuracy Quick Response Metal Gear And Double Bearing Structure. It is very small, and offers huge power for its size. This servo has the dimensions - 43.0 x 23.0 x 38.2mm, develops a stall torque of 4-5 kgf.cm . The servo comes with 3 different horns with mounting holes. The servo comes with an unmatched build quality from Vigor with guarantied reliability. It comes in a standard 3 pin connector for simple & easy control. It is often used in multi legged robot manipulator and the monitoring platform and other products. The steering machine adopts metal gear and double bearing structure, and it is wear-resistant and durable.

Technical Specification

• Voltage: +4.8-6.0 V
• Current: 160mA (4.8V)
• Torque Size: 3.5kg · cm (4.8V); 5.1kg · cm (6.0V)
• No load speed: 0.17 seconds / 60 degrees (4.8V); 0.4 sec / 60 degrees (6.0V)
• Operating temperature: 0 ℃ ~ 60 ℃
• Dead Set: 20us
• Size: 40.2 X 20.2 X 43.2mm
• Weight: 42g
