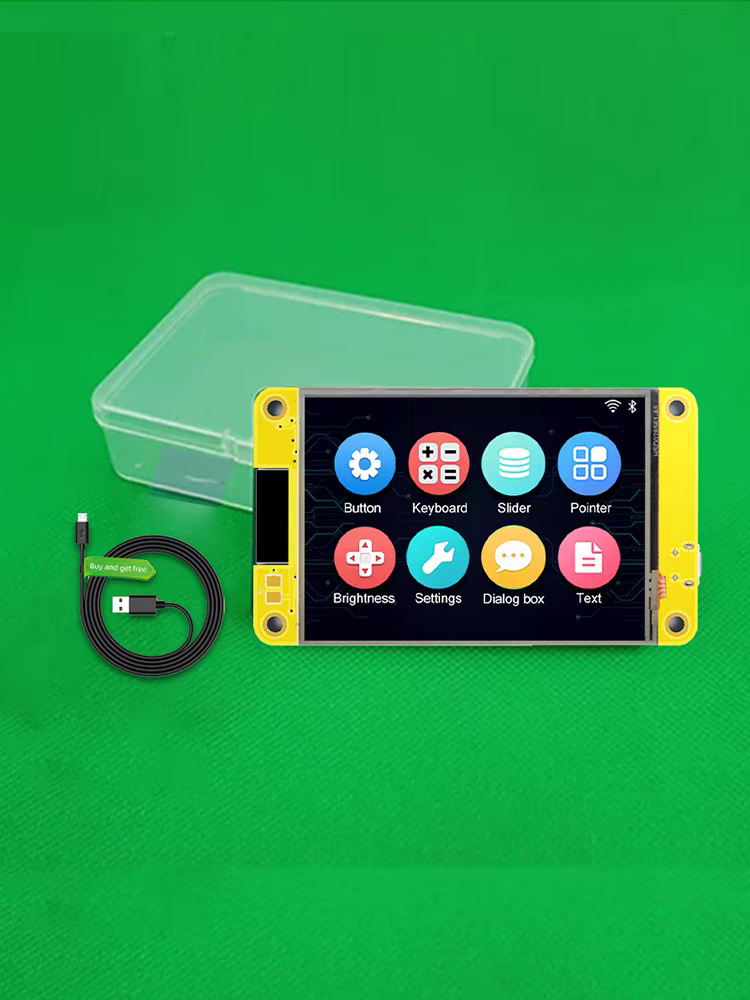

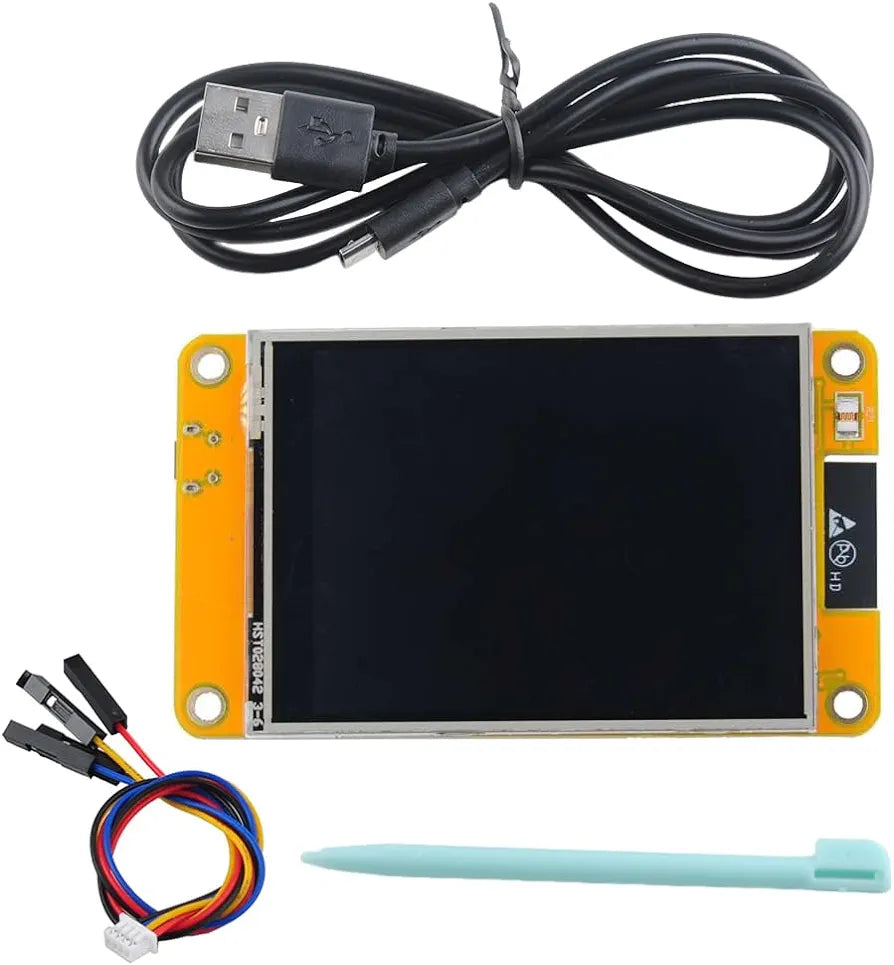

ESP32 smart WiFi development board with 2.8 inches display - CYD (Cheap Yellow Display)

ESP32 smart WiFi development board with 2.8 inches display - CYD (Cheap Yellow Display)

₦34,500.00 NGN
₦34,500.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.
  • This is a very versatile board to build GUIs for your IoT projects and is much more convenient and practical than using a separate ESP32 board with a TFT screen.   Also called Cheap Yellow Board.



  • Specifications :
  • Dual-core MCU, integrated WI-FI and Bluetooth functions
  • Frequency can reach 240MHz
  • 520KB SRAM, 448KB ROM, Flash size is 4MB
  • Module size 50.0×86.0mm
  • Operating Voltage: 5V
  • Power consumption: approximately 115mA
  • Product weight: approximately 50g

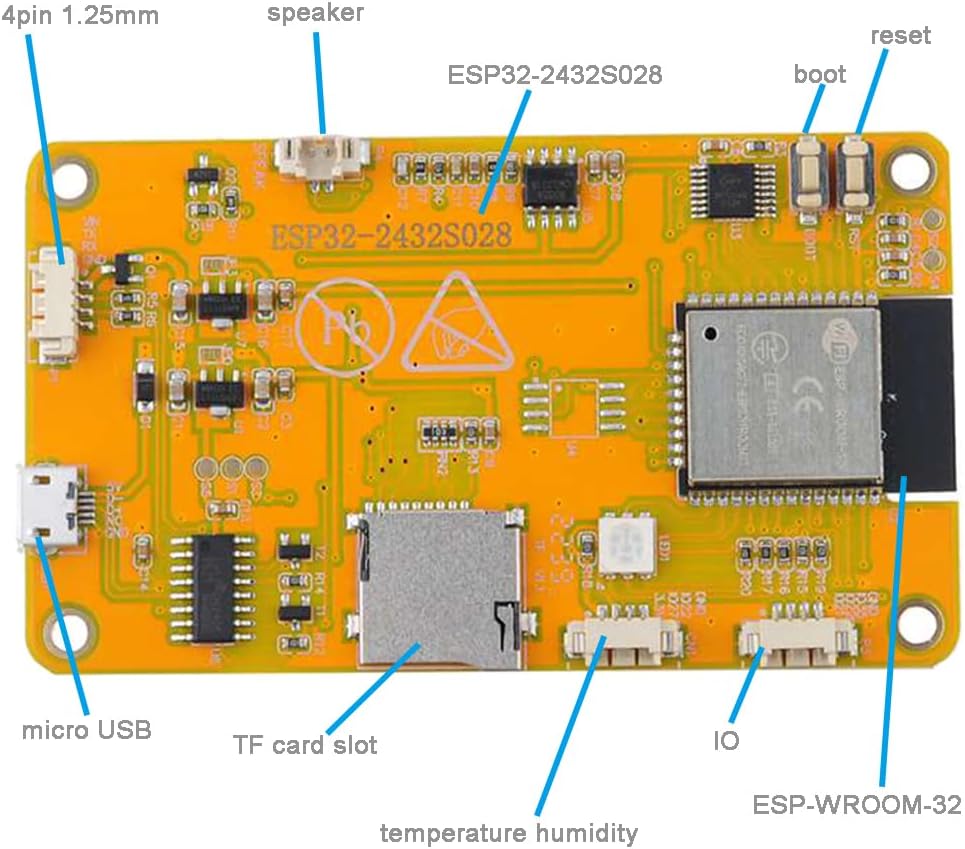

  • The module includes:
    • 2.8-inch color TFT display screen with ILI9341 driver chip
    • Display resolution: 240x320px with resistive touchscreen
    • Backlight control circuit
    • TF card interface for external storage
    • Serial interface
    • Temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface
    • It can be programmed with: Arduino IDE, MicroPython, ESP-IDF
