ESP-32F Module Adapter Board WiFi Bluetooth Low EnergyDual Core CPU MCU Internet for Arduino

The ESP-32F is a versatile WiFi-BT-BLE MCU module, powerful and versatile for use in low-power sensor networksand demanding tasks such as voice encoding, audio streaming, and MP3decoding.

This module is the core ESP32 chip, with scalable, adaptivefeatures. Two CPU cores can be individually controlled or powered on. Theclock frequency can be adjusted from 80 MHz to 240 MHz. The user can cut offthe power to the CPU and use low-power coprocessors to constantly monitor thestate of the peripheral for changes or whether certain analog values exceedthe threshold.

ESP32 also integrates a wealth of peripherals, includingcapacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD cardinterface, Ethernet interface, high-speed SDIO, SPI, UART, I2S, and I2C.32-bit LX6 single/dual core processor with up to 600 DMIPS of computingpower448 KB ROM520 KB SRAM16 KB SRAM in the RTCQSPI can connect up to 4 Flash/ SRAM, each flash is up to 16 MB

Color: black

Supply voltage:2.2V to 3.6V

Working current: average: 80 mA

Temperature range:-40 to + 85 Celsius

Material: Metal Package

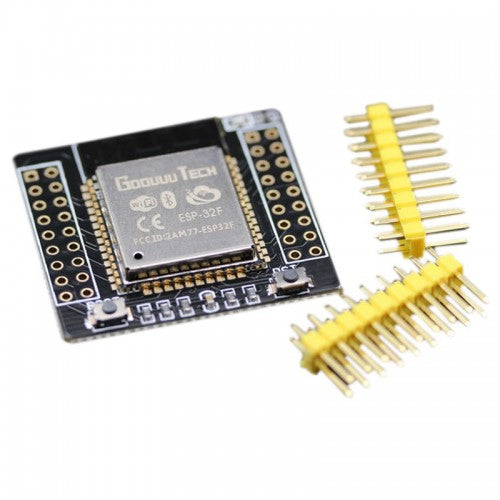

Contents: 1 set ofESP-32F module + adapter board
