Microscale

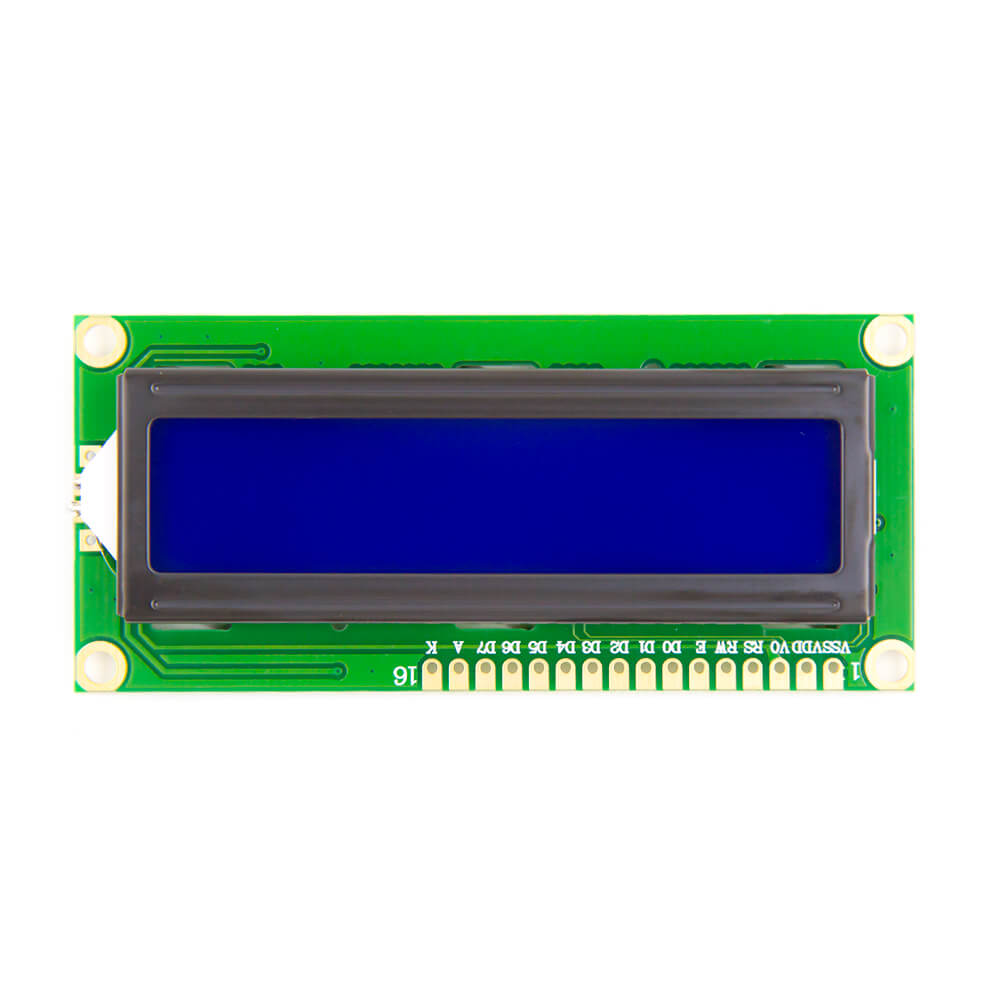

LCD1602 display Blue

LCD1602 display Blue

Regular price ₦2,200.00 NGN
Regular price Sale price ₦2,200.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.
Description:
blue background with white letters
Standard 1602 LCD module (backlight/blue screen)
1602 use standard 16 pin ports:
         1 pin: VVS is grounding power
         2 pin: VDD connect 5V positive-supply
         3 pin: V0 is LCD contrast adjustment side,it is the the weakest contrast when connect positive-supply, it is the highest contrast contrast when connect grounding power
         4 pin: RS is register choice, high levels choose data register , low levels choose Instruction register
         5 pin: R/W is Read/write signal wire, high levels choose reading operation,low levels choose choose writing operation.when RS and RW both are low level you can write Instructions or show address.when RS is low level, RW is high level, you can read signal.On the contrary,you can write data.
         6 pin: E side is power side.when E from high level to low level, LCD module execute the command.
         7-14 pin: D0-D7 are 8 bit double data wire.
         15 pin: backlight positive
         16 pin: backlight negative
Features:

LCD display module with blue blacklight.
Wide viewing angle and high contrast.
Built-in industry standard HD44780 equivalent LCD controller.
Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
LCM type: Characters
Can display 2-lines X 16-characters.
Operate with 5V DC.
Module dimension: 80mm x 35mm x 9mm.
Viewing area size: 64.5mm x 16mm.
