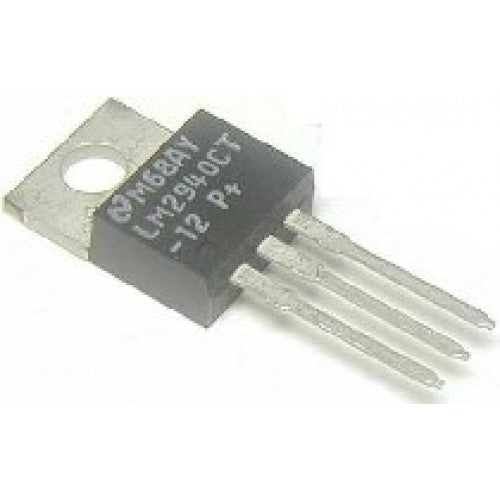

LM2940 Voltage Regulator

The LM2940positive voltage regulator features the ability to source 1A of output current with a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN − VOUT ≤ 3V).

Technical Specification

• Input Voltage 26V
• Dropout voltage typically 0.5V @IO = 1A
• Output current in excess of 1A
• Output voltage trimmed before assembly
• Reverse battery protection
• Internal short circuit current limit
• Mirror image insertion protection
