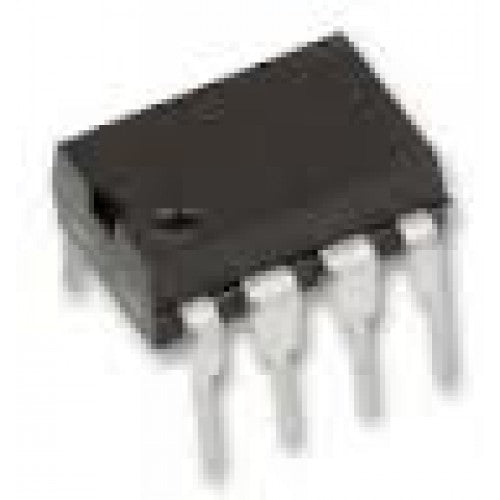

LM567

The LM567 and LM567C are general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the passband. The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.

Technical Specification

• 0 to 1 Frequency Range With an External Resistor
• Logic Compatible Output With 100-mA Current Sinking Capability
• Bandwidth Adjustable From 0 to 14%
• High Rejection of Out of Band Signals and Noise
• Immunity to false Signals
• Highly Stable Center Frequency
• Center Frequency Adjustable from 0.01 Hz to 500 kHz
