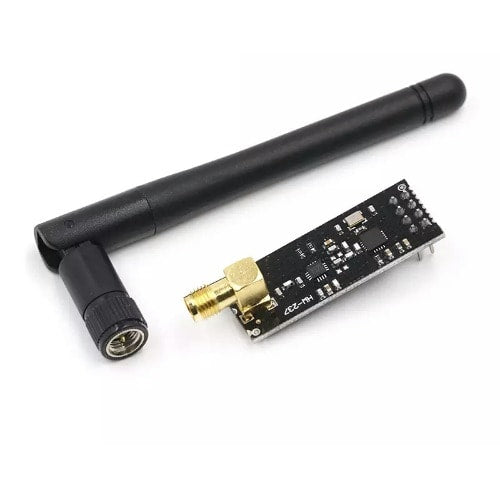

Long range 1.1Km NRF24L01 module with antenna

Long range 1.1Km NRF24L01 module with antenna

Regular price ₦3,400.00 NGN
Regular price Sale price ₦3,400.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

1100 meters long distance NRF24L01+PA+LNA wireless module.

Description:

This wireless Transceiver module is an easy and suitable module if you want to setup your wireless communication system with low cost!!

It can achieve a good balance between wireless transition performance and cost! You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! This nRF24L01+ module is designed with Power amplifier and SMA antenna.

This allowed you to use the wireless communication up to 1000 meters!

SPECIFICATIONS:

Frequence: 2.4GHz~2.5GHz

Voltage: 3- 3.6V

Max output power: +20 dBm

Working current in transmit mode: 115mA

Working current in receiver mode: 45mA

Current in mode: 4.2uA

Operating temperature: -20-70 degree

Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode

PA growth: 20dB

LAN growth: 10dB

LAN noise figure: 2.6dB

Antenna growth: 2dBI

2M rate: 520m

Multi-frequency: 125 frequency Support up to six channels of data reception.
