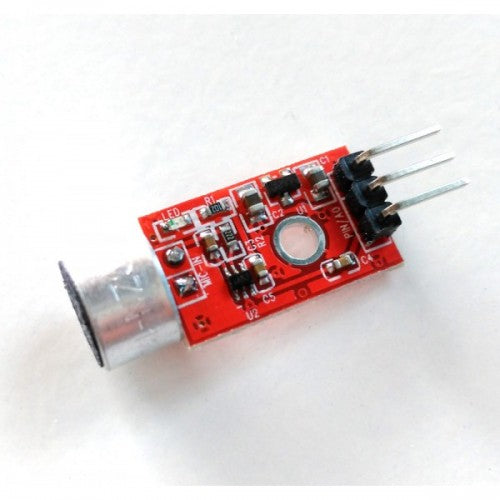

Microphone Amplifier Module

These are single/dual-input, 20dB fixed-gain microphone amplifiers. They offer tiny packaging and a low-noise, integrated microphone bias, making them ideal for portable audio applications such as notebook computers, cell phones, and PDAs. These amplifiers feature a 500kHz bandwidth, rail-to-rail outputs, an industry-leading 100dB power-supply rejection ratio, and a very low 0.015% THD+N. Power-saving features include very low 230µA supply current and a total shutdown mode that cuts the combined supply and BIAS currents to only 100nA.

Technical Specification

• Chipset: Max9812
• Takes in sound via theonboard mic and outputs amplified audio
• Low output noise
• Small package
• High sensitivity
• Fixed gain: 20dB
• Operating voltage: 3V - 5V
• Output Type: Analog
• Size: 15x 9mm
• Arduino Compatible
