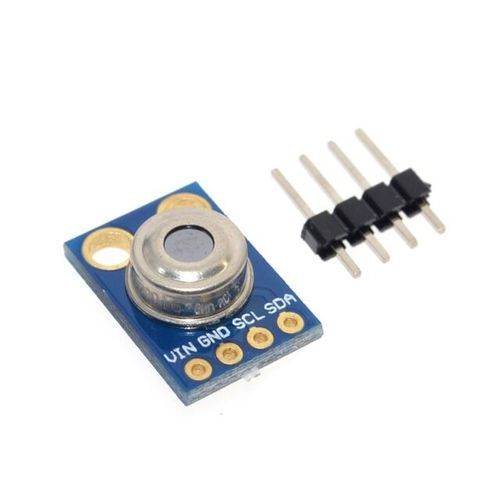

MLX90614ESF Contactless Temperature Sensor
MLX90614ESF Contactless Temperature Sensor
Couldn't load pickup availability
Specification :
GY-906 MLX90614ESF Contactless Temperature Module Compatible
Features:
Small size, low cost Mounted on a breakout board with two types of pins 10k Pull up resistors for the I2C interface with optional solder jumpers Easy to integrate
Factory calibrated in wide temperature range:-40…+125°C for sensor temperature and -70…+380°C for object temperature.
High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration
Measurement resolution of 0.02°C Single and dual zone versions SMBus compatible digital interface Customizable PWM output for continuousreading
Simple adaptation for 8-16V applications
Sleep mode for reduced power consumption
Different package options for applications andmeasurements versatility Automotive grade
