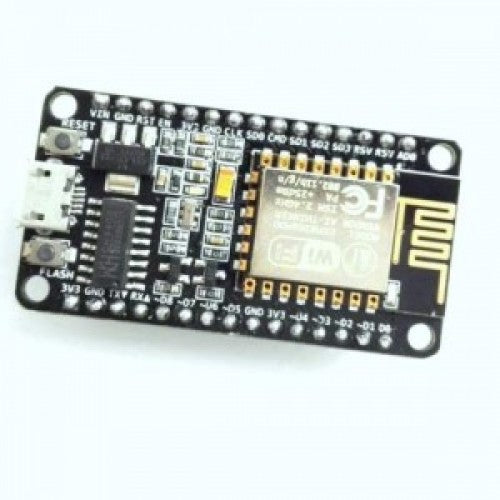

Nodemcu ESP8266 v1.0

Description ESP 8266 NodeMCU Wi-Fi Development Board is an open source IoT platform. It includes firmware which runs on the ESP 8266 Wi-Fi SoC from Espressif system and hardware which is based on the ESP-12 module. The term “NodeMCU” by default refers to the firmware rather than the development kits. The firmware uses the Lua scripting language. It is based on the eLua project and built on the Espressif Non-OS SDK for ESP8266. The ESP8266 contains all crucial elements of the modern computer: CPU, RAM, networking (wifi), and even a modern operating system and SDK. As the cost is quite cheap, makes it an excellent choice for IoT projects of all kinds. Features: Programmable WiFi module. Arduino-like (software defined) hardware IO. USB-TTL included plug & play. 10 GPIOs D0-D10, PWM functionality, IIC and SPI communication, 1-Wire and ADC A0 etc. all in one board. Wifi networking (can be used as an access point and/or station, host a web server), connect to the internet to fetch or upload data. PCB antenna.

Features Microcontroller: Tensilica 32-bit RISC CPU Xtensa LX106

Operating Voltage: 3.3V

Input Voltage: 7-12V

Digital I/O Pins (DIO): 16

Analog Input Pins (ADC): 1

UARTs: 1

SPIs: 1

I2Cs: 1

Flash Memory: 4 MB

SRAM: 64 KB

Clock Speed: 80 MHz

USB-TTL based on CP2102 is included onboard, Enabling Plug n Play PCB Antenna

Small Sized module to fit smartly inside your IoT projects
