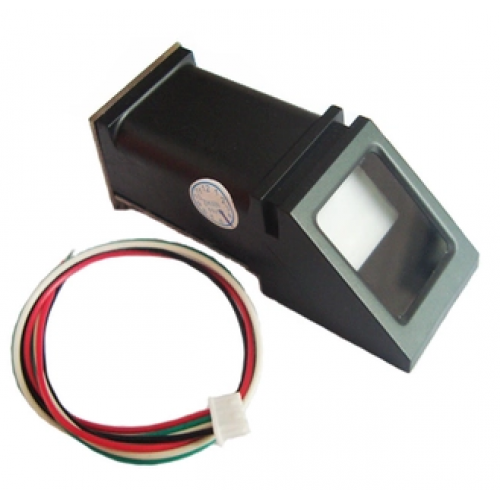

Optical fingerprint module FPM10A

Usage is very simple one : as long as the serial microcontroller , embeddedmodules can operate this, MSP430 , 51 , ​​AVR , PIC , STM32 , ARM , FPGA ,Arduino controller ,pcDuino so you can operate this module. This module iscontrolled through the serial port, you can use the computer s serial port tocontrol this module.
Products from optical fingerprint sensor , high-speed DSP processors, high-performance fingerprint matching algorithms, large-capacity FLASH chips and other hardware and software composition. Thefingerprint module is stable, functional, both fingerprint, a variety offunctions fingerprint registration, fingerprint matching, fingerprintsearch.

Applications : widely used fingerprintmodules, fingerprint identification systems suitable for all from high-end tolow-end. For example

◆ security fingerprint door locks, safes, gun cases, and finance;
◆ access control systems, industrial machines, POS machines, driver training, attendance and other identity areas;
◆ private clubs, management software, licensing, authorization management field.

Specifications:

◆ Supply voltage: DC 3.6 ~ 6.0V
◆ Supply Current: Current: <120mA
Peak current: <140mA
◆ fingerprint image time: < 1.0 sec.
◆ Window Size: 14 × 18 mm
◆ signature files: 256 bytes
◆ template files: 512 bytes
◆ Storage capacity : 1000 pieces
◆ false Accept Rate (FAR) : < 0.001% ( security level 3Time )
◆ false Reject Rate (FRR) : < 1.0% (security level 3Time)
◆ Search time : < 1.0 sec ( 1:500 , the mean)
◆ Host Interface: UART ( TTL logic level)
◆ communication baud rate (UART) : (9600 × N) bps where N = 1 ~ 12 (default value N = 6 , ie57600 bps )
◆ Working environment: temperature    degrees: -20 ℃ to +50 ℃
Relative Humidity: 40 % RH to 85 % RH ( non-condensing )
◆ Storage environment: Temperature    degree: -40 ℃ to +85 ℃
Relative humidity: < 85 % H (non-condensing)
◆ Dimensions (L × W × H) : 56 × 20 × 21.5mm
