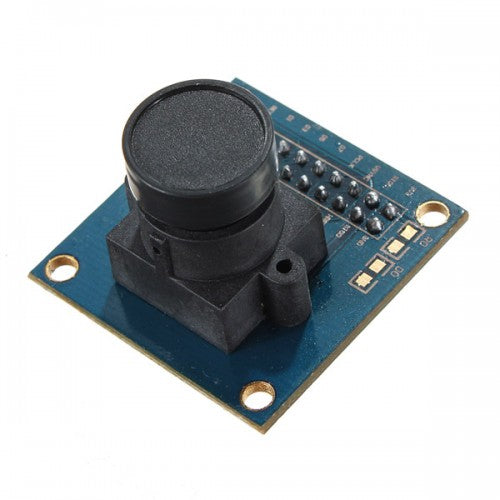

OV7670 Camera Module

OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE is a low-cost image sensor, DSP that can operate at a maximum of 30 fps and 640 x 480 (“VGA”) resolutions, equivalent to 0.3 Megapixels.

The captured image can be pre-processed by the DSP before sending it out. This pre-processing can be configured via the Serial Camera Control Bus (SCCB). OmniVision OV7670 CMOS VGA (640×480) CAMERA-CHIP Sensor with OmniPixel technology 3.3V DC Input Voltage. working Temp. 0-50 Degree Celsius All Glass Lenses, Lens(including seat) is Magnesium Alloy material.

Features:

MODEL: OV7670 640X480 VGA CMOS CAMERA

Pixel Coverage: 3.6um x 3.6um;

Duck Current: 12 mV/s at 6’C Support VGA, CIF and from CIF to 40 x 30 format;

Vario Pixel method for sub-sampling; Auto

Image Control: AEC, AGC, AWB, ABF, ABLC;

Image Quality Control: Color saturation, hue, gamma, sharpness, and anti-blooming; ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction; Flicker 50/60Hz auto-detection; Color saturation level auto adjust; Edge enhancement level auto adjust; De-noise level auto adjust High sensitivity for low light applications Low voltage suitable for embedded applications Standard sccb interface, compatible with i2c interface
