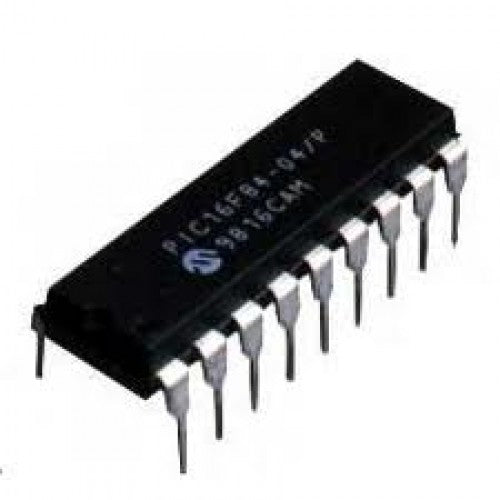

PIC16F84A

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash/EEPROM-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package. The same device can be used for prototyping and production and the end application can be easily updated without removing the device from the end product via the ICSP. Easily adapted for automotive, industrial, appliances low power remote sensors, electronic locks and security applications.

Technical Specification

• No. of Pins 18
• CPU 8-Bit PIC
• Operating Voltage 2 to 5.5 V
• No. of I/O Pins 13
• Program Memory 1K or 1024 words
• RAM 68 Bytes
• EEPROM 64 Bytes
• Internal Oscillator NiL
• External Oscillator 20 MHz
• Timer 8-Bit Timer (1)
• USART Protocol 1
• I2C Protocol NiL
• SPI Protocol NiL
• No. of Special Function Registers 15
• Watchdog Timer Yes
• Power-on Reset Yes
• Design Static
• Segment LED No
• Power Saving Sleep Mode Yes
• Selectable Oscillator Option Yes
• Maximum Current Drawn Each Pin 25mA
• Data Retention Capability 40 Years
• Oscillator Start-up Timer Yes
