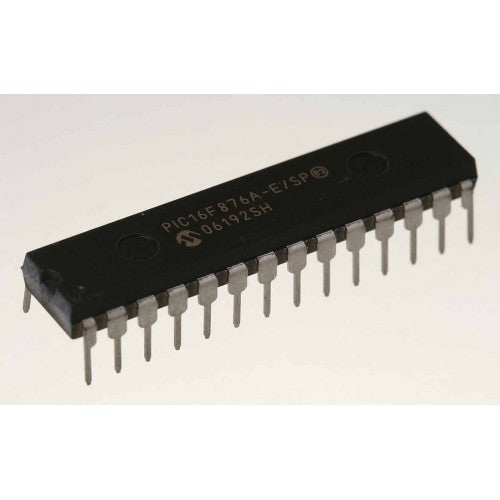

PIC16F876A

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F876A features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 5 channels of 10-bit Analog-to-Digital (A/D) converter, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

Technical Specification

• CPU
  • Up to 5 MIPS performance
• System
  • 22 I/O Pins with Individual Direction Control
  • 20 MHz Clock Input
  • 14 KB Program Memory
  • 368 bytes RAM
  • 256 bytes EEPROM
  • Operating Voltage Range – 2.0V to 5.5V
  • 25mA Source/Sink current I/O
• Analog Features
  • 10-bit ADC, 5 channels
  • Two Analog comparators
  • Programmable on-chip voltage reference(VREF) module
  • Programmable input multiplexing from device inputs and internal voltage reference
  • Comparator outputs are externally accessible
• Peripherals
  • Timer: 2 x 8-bit, 1 x 16-bit
• Two Capture, Compare, PWM modules
  • Capture is 16-bit, max. resolution is 12.5 ns
  • Compare is 16-bit, max. resolution is 200 ns
  • PWM max. resolution is 10-bit
• Synchronous Serial Port (SSP) with SPI™(Master mode) and I2C™ (Master/Slave)
• Universal Synchronous Asynchronous ReceiverTransmitter (USART/SCI) with 9-bit address detection
