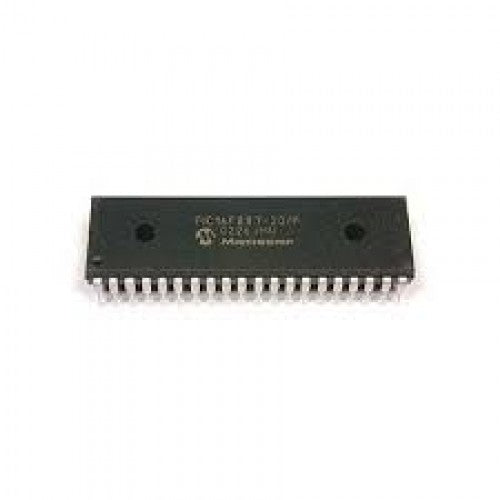

PIC16F887A

This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 40- or 44-pin package.The PIC16F887 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 14 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances or consumer applications.

Technical Specification

• Program Memory Type: Flash
• Program Memory Size (KB): 14
• CPU Speed (MIPS/DMIPS): 5
• SRAM Bytes: 368
• Data EEPROM/HEF (bytes): 256
• Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
• Capture/Compare/PWM Peripherals: 2 Input Capture, 1 CCP, 1 ECCP
• Timers: 2 x 8-bit, 1 x 16-bit
• ADC Input: 14 ch, 10-bit
• Number of Comparators: 2
• Temperature Range (C): -40 to 125
• Operating Voltage Range (V): 2 to 5.5
• Pin Count: 40
