Microscale

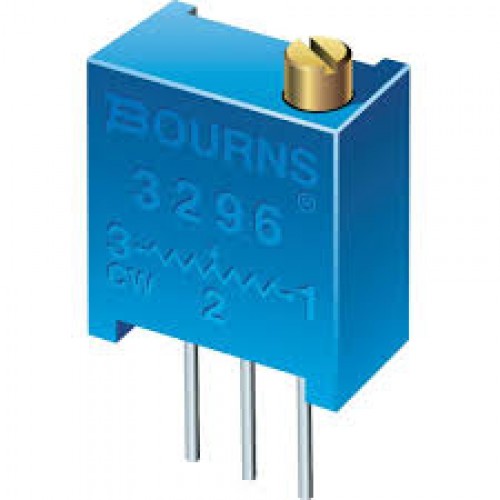

Potentiometer 10k

Potentiometer 10k

Regular price ₦210.00 NGN
Regular price Sale price ₦210.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

103 10k variable resistor

Potentiometers also known as POT, are nothing but variable resistors. They can provide a variable resistance by simply varying the knob on top of its head. It can be classified based on two main parameters. One is their Resistance (R-ohms) itself and the other is its Power (P-Watts) rating. The value or resistance decides how much opposition it provides to the flow of current. The greater the resistor value the smaller the current will flow.

Technical Specification

  • Resistance (Ohms) 10K
  • Power (Watts) 0.5W, 1/2W
  • Number of Turns Single
  • Adjustment Type Top Adjustment
  • Tolerance ±10%
  • Mounting Type Through Hole
  • Temperature Coefficient ±100ppm/°C
  • Resistive Material Cermet
  • Packaging Tube
  • Lead Free Status Contains Lead
  • RoHS Status RoHS Non-Compliant
