Microscale

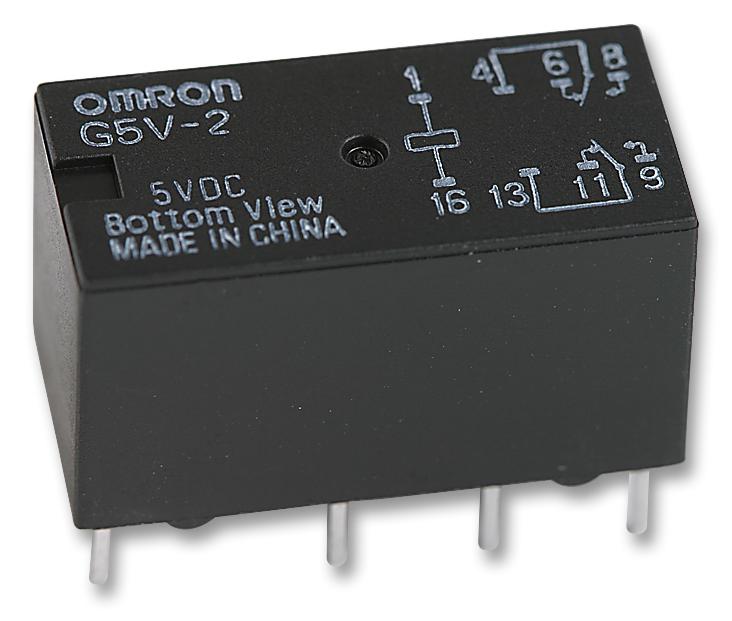

Relay G5V-2 5VDC

Relay G5V-2 5VDC

Regular price ₦1,600.00 NGN
Regular price Sale price ₦1,600.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

Pickup available at Suite 73, Dummec Plaza

Usually ready in 1 hour

Dimensions (mm): 20.5×10.1×11.5mm (L×W×H) Weight: 6g


Product details: Contact parameters:


Contact type: 2C (DPDT)


Contact load: 0.50 A at 125 VAC, 2 A at 30 VDC Impedance: ≤50mΩ


Rated current: 2A


Electrical life: ≥1.5 million times Mechanical life: ≥15 million times


Coil parameters:


Resistance (±10%): 288Ω


Coil power consumption: 500mW


Rated voltage: DC 12V


Pull-in voltage: DC 9 V


Release voltage: DC 0.6V


Operating temperature: -25℃~+70℃


Insulation resistance: ≥1000MΩ


Withstand voltage between coil and contact: 1000VAC/1 minute


Withstand voltage between contact and contact: 1000VAC/1 minute
