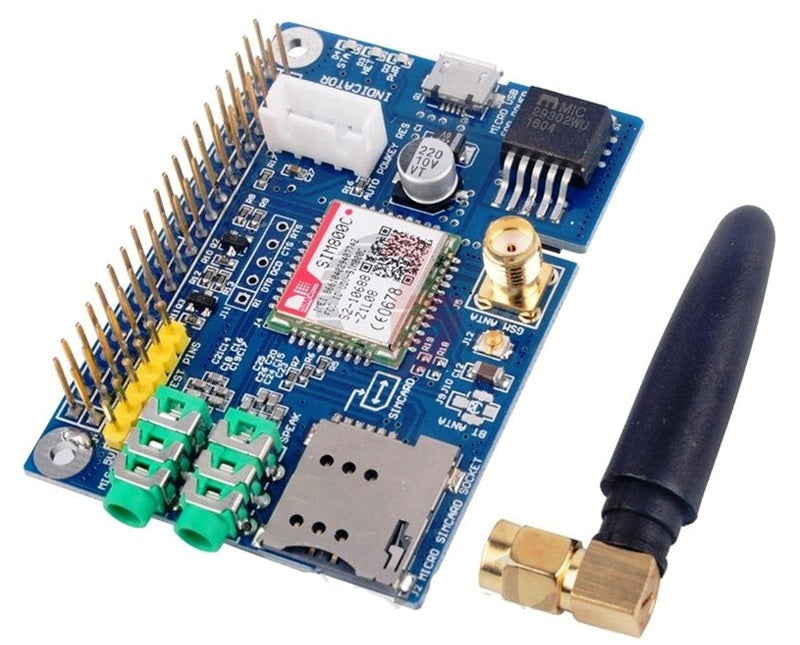

Sim800C shield for Raspberry pi and Arduino

The GPRS/GSM Shield provides you a way to use the GSM phone network to receive data from a remote location，and it is compatible with all boards which have the same form factor (and pin out) as a standard Arduino Board. This shield can also be applied to DIY phones for calling, receiving and sending messages, making GPS tracker or other applications like Smart home etc. SIM800C GPRS/GSM Shield delivers GSM/GPRS850/900/1800/1900MHz signals for Audio, SMS and GPRS Service. Also, it runs at low power consumption of about 0.6mA in sleep mode but acts compliant to GSM phase 2/2+: Class 4 (2 W @850/ 900 MHz), Class 1 (1 W @ 1800/1900MHz) with two-in-one headset jack.

Technical Specification

• Quad-Band 850/ 900/ 1800/ 1900 MHz
• GPRS multi-slot class 10/12
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
• 2-in-1 headset jack
• Low power consumption: 0.6mA(sleep mode)
• Supply voltage range : 5 -12V
• Operation temperature: -40°C to +85 °C
• Compliant to GSM phase 2/2+: Class 4 (2 W @850/ 900 MHz), Class 1 (1 W @ 1800/1900MHz)
