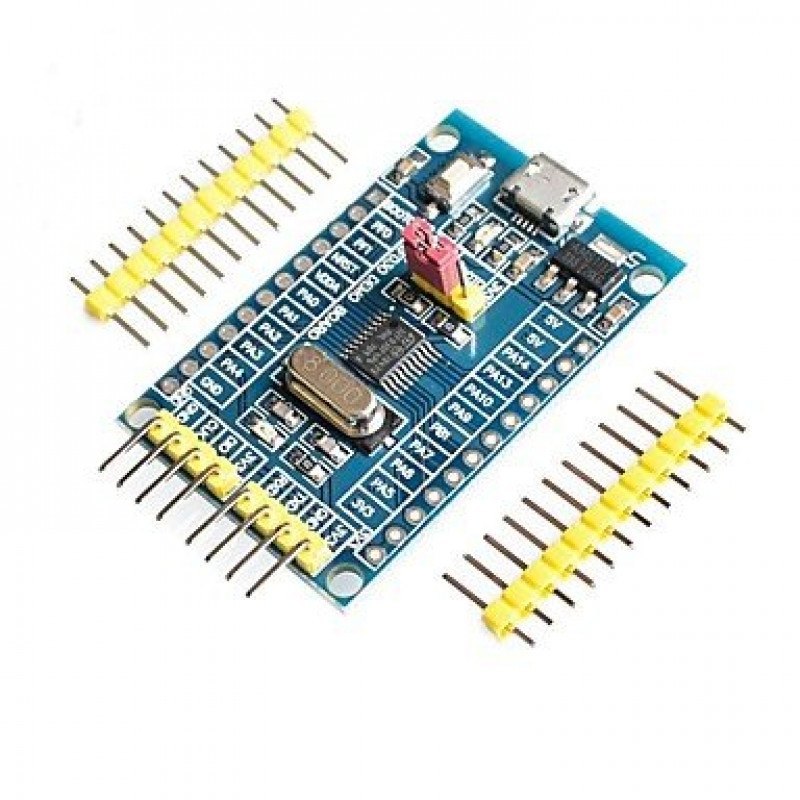

STM32F030 development board core ARM CORTEX-M0

Description

Stm32f030 development board (the two sides of the pin header are not soldered, the pin header is sent, the USB cable is not included)

Function: 1. All IO ports are taken out (with silk screen for easy external connection)

1. The serial port is separately led out, and there are multiple sets of 3.3V 5V power supply, which is convenient for power supply of external function modules.

2. A user LED light

3. A reset button

4. Serial port download BOOT selection

6.SWD mode download interface (can be downloaded through JLINK, KEIL version 5.0 when debugging)

1. A power LED light

Features & details

Stm32f030 development board (the two sides of the pin are not soldered, send pin, do not contain USB cable)

STM32F030F4P6 core board MCU development board STM32 small system board M0 core core board.
