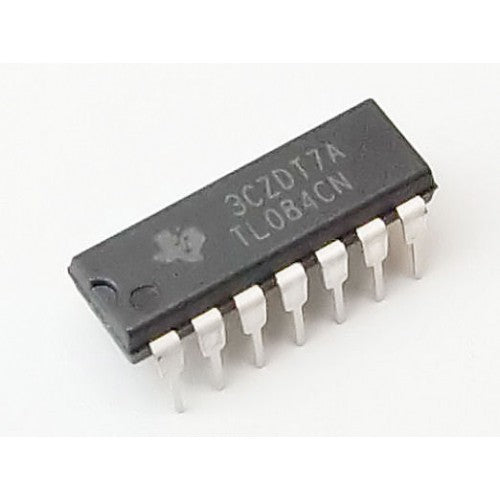

TL084CN Operational Amplifier

The TL084 is a Quad Package Operational Amplifier, meaning it has four Op-Amps inside it and each Op-Amp can be used independently. The main distinguishing feature of the TL084 Op-Amp is that they incorporate high-voltage JFET and bipolar transistors which helps the transistor to have very high input impedance and low bias current. Also this Op-Amp has low noise and harmonic distortion making it an ideal choice for audio pre-amplifiers. So if you are looking for an Op-Amp IC with Quad package and JFET driven then this IC might be the right choice for you.

Technical Specification

• JFET Input Op-Amp Quad Package
• Typical Operating Voltage: +18V to -18V
• Minimum Operating Voltage: 7V
• Input Bias Current: 20pA
• Input Offset Voltage: 3mV
• Common mode Rejection Ratio CMRR: 86dB
• Gain: 200 V/mV
• Bandwidth: 4MHz
• Output Short circuit protection
