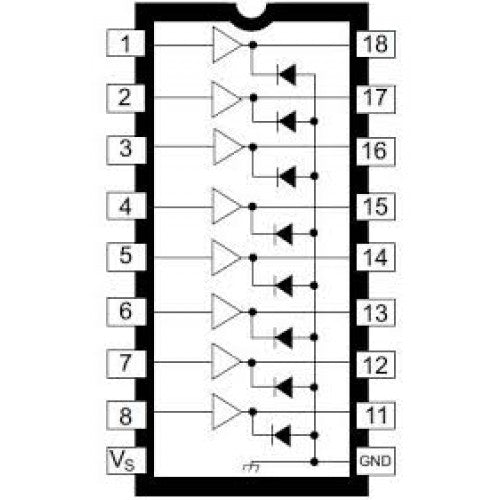

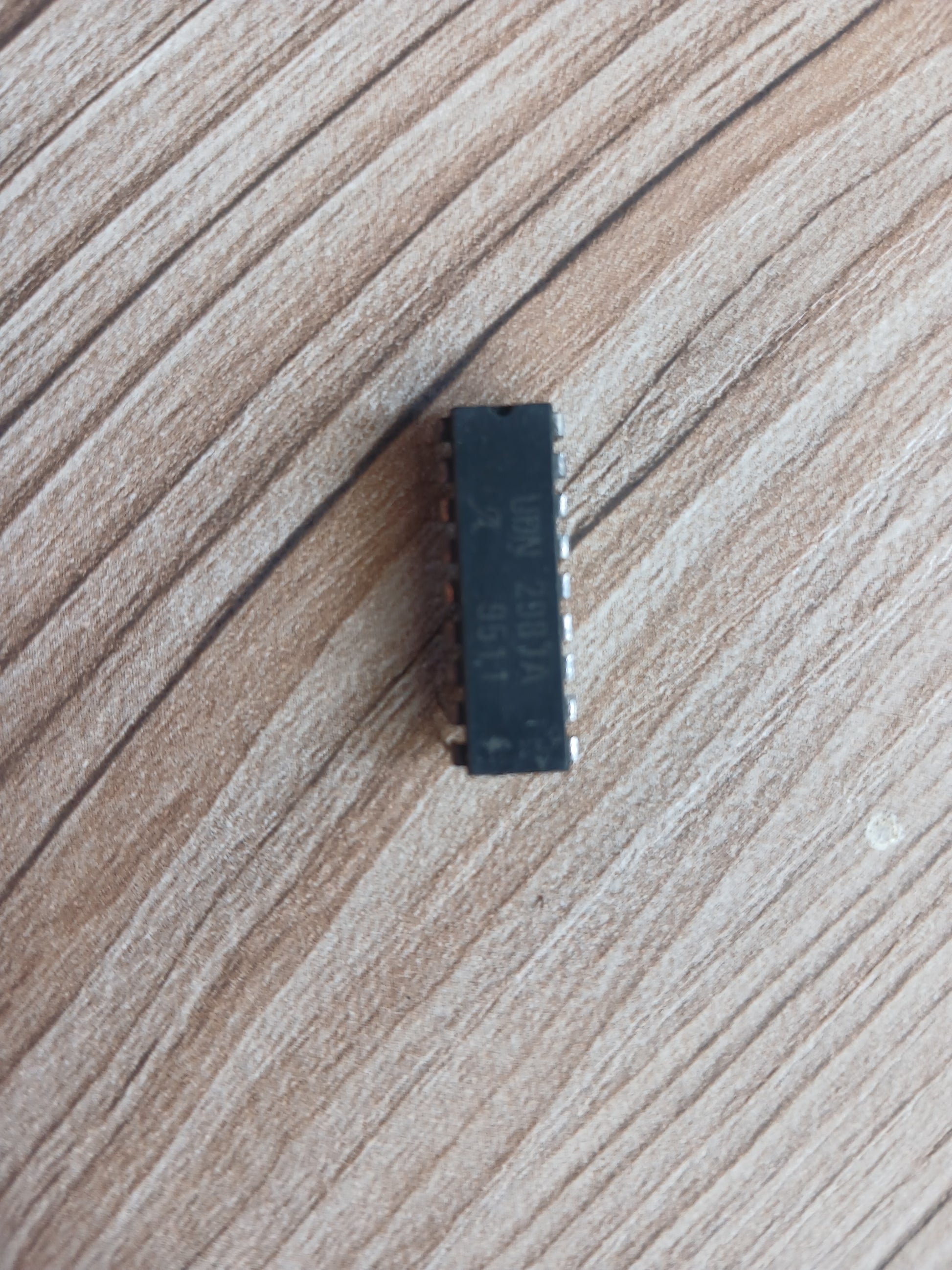

UDN2981A

This 8-CHANNEL SOURCE DRIVERS is recommended for high-side switching applications that benefit from separate logic and load grounds, these devices encompass load supply voltages to 80 V and output currents to -500 mA. These 8-channel source drivers are useful for interfacing between low-level logic and high-current loads. Typical loads include relays, solenoids, lamps, stepper and/or servo motors, print hammers, and LEDs.

Technical Specification

• TTL, DTL, PMOS, or CMOS Compatible Inputs
• 500 mA Output Source Current Capability
• Transient-Protected Outputs
• Output Breakdown Voltage to 50 V
