HCSR04 Ultrasonic Range Sensor

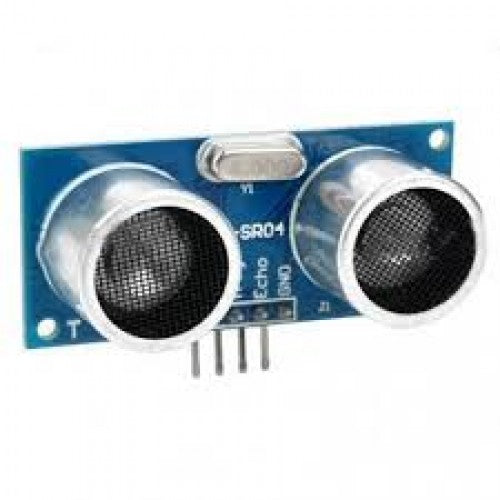

The HC-SR04 ultrasonic range sensor is an economical sensor which provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit. The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package.The Ultrasonic transmitter transmits an ultrasonic wave, this wave travels in air and when it gets objected by any material it gets reflected back toward the sensor this reflected wave is observed by the Ultrasonic receiver module. The distance can be simply calculated using a microcontroller or microprocessor. There are only four pins that you need to worry about on the HC-SR04: VCC (Power), Trig (Trigger), Echo (Receive), and GND (Ground). You will find this sensor very easy to set up and use for your next range-finding project!

Technical Specification

• Power Supply :+5V DC
• Quiescent Current : <2mA
• Working Current: 15mA
• Effectual Angle: <15°
• Ranging Distance : 2cm – 400 cm/1″ – 13ft
• Resolution : 0.3 cm
• Measuring Angle: 30 degree
• Trigger Input Pulse width: 10uS
• Dimension: 45mm x 20mm x 15mm
