Microscale

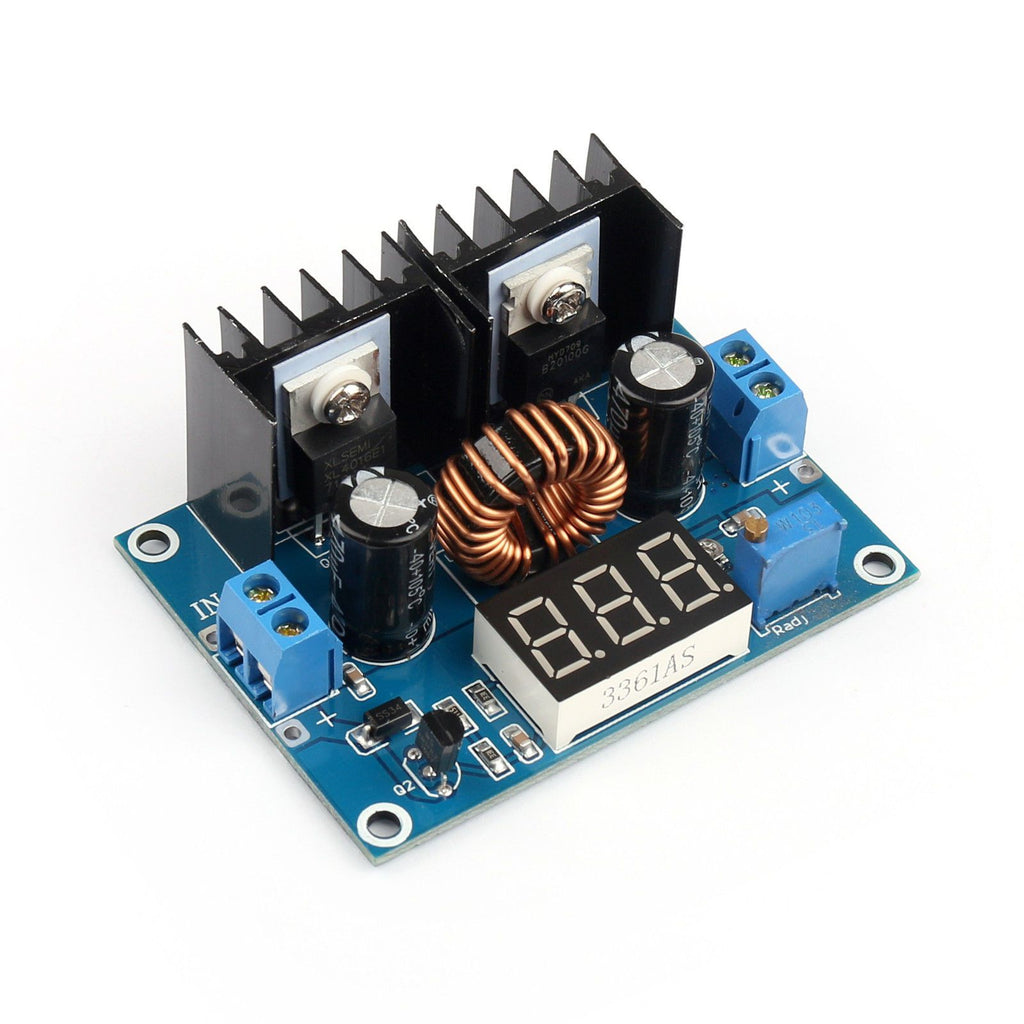

XL4016 8A buck Converter with voltmeter display

XL4016 8A buck Converter with voltmeter display

Regular price ₦4,500.00 NGN
Regular price Sale price ₦4,500.00 NGN
Sale Sold out
Tax included. Shipping calculated at checkout.

XL4016E1 8A 200W DC-DC Step-down Power Supply Module DC 4-40V To DC 1.25-36V Buck Module.

Description: The voltage regulator has excellent linearity regulation and load regulation With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc

Wide Application:

Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc Product name: DC voltage regulator Voltage regulating mode: PWM modulation Input voltage: DC 4-38V Output voltage: DC 1.25-36V Maximum current: 8A(please add fan and make current less than 5A for a long term use) Maximum power: 200W Conversion efficiency: 95% Switching frequency: 180KHz Working Temperature: -45~+85℃ Size: 6x3.7cm/2.36x1.46inch

Note:

1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Please make sure there is a 2V voltage difference between input voltage and output voltage The maximum output current can reach 8A; For long time working please make sure the current is less than 5A. This is not a step up module, but a step down module

Specifications:

Buck chip: XL4016E1 Input voltage: DC4-40V Output voltage: DC1.25-36V Maximum power: 200W Output current: max 8A (long operation, recommended 5A) Conversion efficiency: 94% Size: 61 x 40 x29mm
