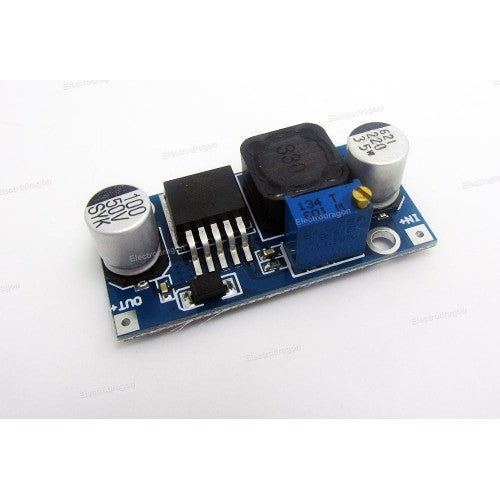

XL6009 DC-DC boost module

This DC-DC Module is based on IC XL6009E1 which is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip that offers superior performance over the first generation technology LM2577. XL6009 replaces LM2577 module as LM2577 is about to be phased out. XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage, high efficiency. It converts input voltage of 5-32V DC to an output voltage of 4-38V DC

Technical Specification

  • Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
  • Wide Output voltage 5V ~ 35V;
  • Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
  • High switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller.
  • Conversion Efficiency: 94% (the greater the pressure, the lower the efficiency)
  • Output Ripple: 50mV (the higher the voltage, the greater the current, the greater ripple)
  • Load Regulation : ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Working Temperature: -40~+85°C
  • Dimensions :48x25x14mm (LxWxH)
